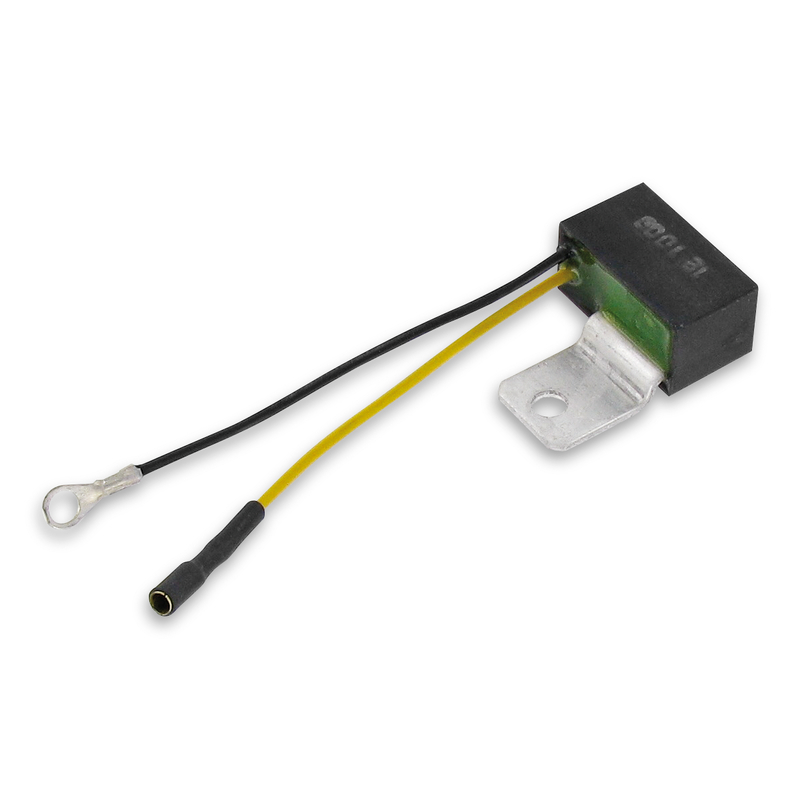

Régulateur de tension RMS 12V avec 2 câble

This voltage limiter is installed like a load between earth and a live cable and reliably limits the voltage to the nominal value. Any excess voltage is discharged to earth. The service life of the bulbs is significantly increased.
One cable is fitted with a 4mm round plug, the other with a 6mm round eyelet.

Dimensions:

Length with holder: 45mm
Length without holder: 20mm
Width: 35mm
Height: 18mm
Cable length: 90mm

Installation instructions:

Black cable:
The cable lug of the black cable is preferably screwed directly to the frame or to an existing earth point together with the fixing lug of the controller.

Yellow cable:
The yellow cable from the voltage limiter is connected in parallel to the current-carrying cable coming from the light coil.
